components
Torpedo Nozzle
-
The A360N is constructed with 6061 T6 structural aluminum tubing. With an overall 2" OD. All aluminum components are hard-coat anodized to meet NFPA specifications. This quality material gives our tools great durability, while at the same time, having the advantage of being light weight. There are 49 holes, each is machined at a different angle progressively. Each row of holes is offset 15 degrees, which gives off a balanced, atomized pattern. Hitting all areas inside a fire compartment. Because of the precise spacing of each hole, the torpedo nozzle is completely neutral while flowing water. This makes the tool very maneuverable on a fire ground, with little to no push back.
-
The A360N is constructed with 6061 T6 structural aluminum tubing. With an overall 2" OD. All aluminum components are hard-coat anodized to meet NFPA specifications. This quality material gives our tools great durability, while at the same time, having the advantage of being light weight. There are 49 holes, each is machined at a different angle progressively. Each row of holes is offset 15 degrees, which gives off a balanced, atomized pattern. Hitting all areas inside a fire compartment. Because of the precise spacing of each hole, the torpedo nozzle is completely neutral while flowing water. This makes the tool very maneuverable on a fire ground, with little to no push back.

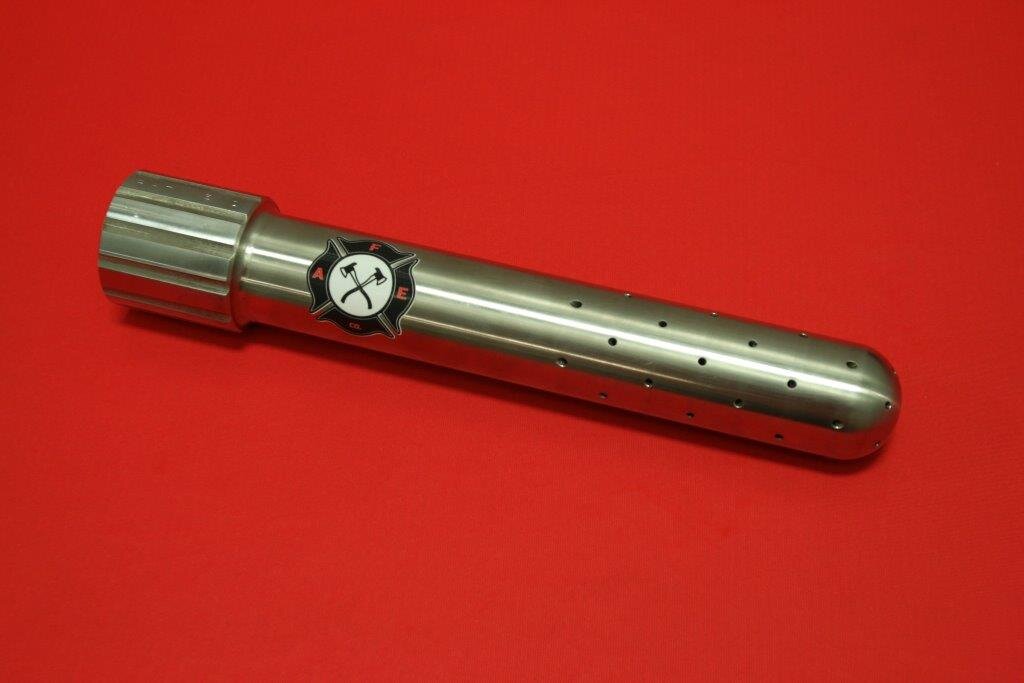

Stainless Torpedo Nozzle
With all the same physical features of it's aluminum counterpart. The A360SN is an upgraded, Stainless Steel version of the Torpedo Nozzle. The stainless upgrade gives the tool an added level of durability and longevity. This upgrade is an additional cost to a standard set.
With all the same physical features of it's aluminum counterpart. The A360SN is an upgraded, Stainless Steel version of the Torpedo Nozzle. The stainless upgrade gives the tool an added level of durability and longevity. This upgrade is an additional cost to a standard set.

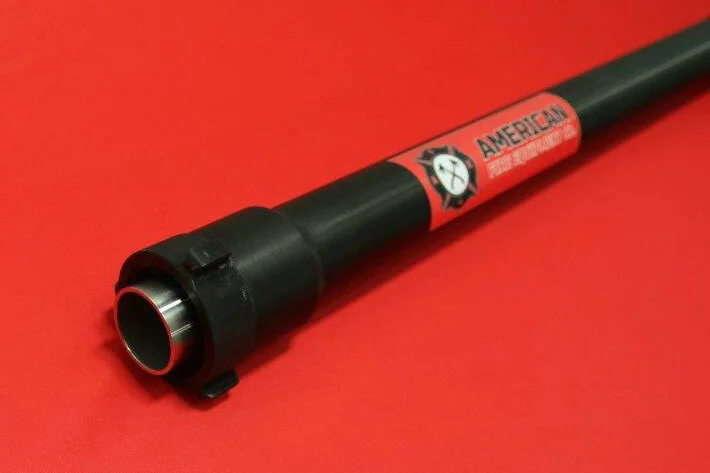

Torpedo Extensions
In correspondence with the Torpedo Nozzle. Each Torpedo Extension is made with the same 6061 T6 Aluminum Tube, welded onto Standard 1 ½" NH hose couplers, and hard-coat anodized. The convenience of assembling this tool with standard hose couplers, makes for fast and easy assembly on the fire ground. As an added measure, American Fire Equipment developed a stainless alignment support sleeve in each extension for easy assembly, as well as added strength to the joint. Each department can choose their own combination of extension lengths. 3', 4', 5', 8', 10', and 12' extensions are in stock items. Additionally, because all Torpedo Nozzle components are made in-house, we can produce any custom length from 1' to 24'.
In correspondence with the Torpedo Nozzle. Each Torpedo Extension is made with the same 6061 T6 Aluminum Tube, welded onto Standard 1 ½" NH hose couplers, and hard-coat anodized. The convenience of assembling this tool with standard hose couplers, makes for fast and easy assembly on the fire ground. As an added measure, American Fire Equipment developed a stainless alignment support sleeve in each extension for easy assembly, as well as added strength to the joint. Each department can choose their own combination of extension lengths. 3', 4', 5', 8', 10', and 12' extensions are in stock items. Additionally, because all Torpedo Nozzle components are made in-house, we can produce any custom length from 1' to 24'.
1 ½" Shut-off Valve
American Fire Equipment chose to use a 1 ½" Shut-off valve with a full flow water way for the Torpedo Nozzle set package. This item is a high-quality U.S. Made tool, manufactured for American Fire Equipment. It was very important to us to offer an AMERICAN MADE valve, with a full water way to support the volume of flow rate that is required to sustain the desired gallons per minute in order for the ideal pattern discharge from the Torpedo.
American Fire Equipment chose to use a 1 ½" Shut-off valve with a full flow water way for the Torpedo Nozzle set package. This item is a high-quality U.S. Made tool, manufactured for American Fire Equipment. It was very important to us to offer an AMERICAN MADE valve, with a full water way to support the volume of flow rate that is required to sustain the desired gallons per minute in order for the ideal pattern discharge from the Torpedo.
Component Pricing
Part #
Components
List Price
A360N
Aluminum Torpedo Nozzle
$1,392
A360SN
Stainless Torpedo Nozzle
$2,292
A360V
1.5" Shut-off Valve
$489
A3603E
3' Extension
$703
A3604E
4' Extension
$723
A3605E
5' Extension
$743
A3608E
8' Extension
$803
A36010E
10' Extension
$878
A36012E
12' Extension
$918
